Improved Racing Low-Profile Oil Cooler Thermostat 180F

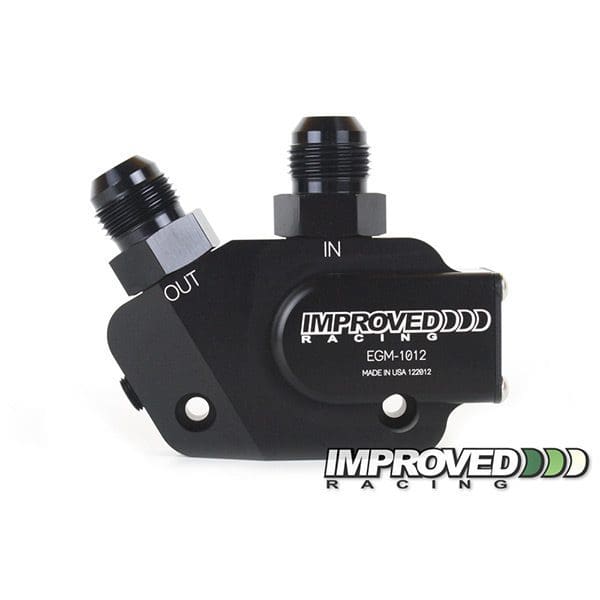

Improved Racing’s low-profile oil cooler adapter bolts directly to the factory GM LS oil pan and features a built-in thermostat. The angled front cutout and a maximum thickness of just 1.30″ makes this unit slim enough to clear most headers. Oil coolers help prevent the oil from getting too hot, but are also prone to lowering oil temperatures too much, especially in colder weather or during highway driving. This unit’s built-in thermostat helps protect the engine by speeding up warm-up time and maintaining oil temperatures at optimal levels. The thermostat maintains a minimum oil temperature of 180°F (82°C) /- 5°F in most conditions. The adapter features an 1/8″ NPT port for an oil sensor or turbo oil supply. It’s machined from a single piece of 6061-T6 aluminum and is black anodized. The adapter features standard female -08AN O-ring boss ports for optional anodized adapter fittings for -08AN, -10AN or -12AN lines. The adapter can be mounted upside down on the 2010 Camaro / G8 oil pan for additional header clearance. Old part number EGM-1012. Features and Benefits 100% bolt-on in place of the factory oil bypass cover, just above the oil filter Built-in thermostat helps reduce engine wear and horsepower losses by preventing oil temperatures from dropping below optimal levels Maintains a minimum oil temperature of 180°F (82°C) /- 5°F in most conditions Low-profile design maximizes header clearance. Clears most long tube headers such as the JTR and Spoolin Performance headers in FD RX-7 LSX swaps Rebuildable – just send it back to us and we will replace the thermal actuator, spring and seals 1/8″ NPT port for a sensor or turbo oil feed line Retains stock oil filter location Oil exiting the adapter is filtered oil 6061-T6 billet aluminum construction with black MIL-A-8625 Type II anodized finish Viton seals throughout Lifetime Warranty Made in the USA Dimensions (Click to Enlarge) *All dimensions shown in inches Includes 1x Low-profile thermostatic oil cooler adapter block 2x Black anodized -08AN, -10AN, or -12AN adapter fittings with Viton O-rings (OPTIONAL) 2x Viton O-rings 2x Stainless steel mounting screws 1x 1/8″ NPT plug with thread sealant Installation Notes Note: This oil adapter is designed for O-ring boss fittings with a straight thread length of 0.500″ or less. We recommend using our fittings in order to guarantee proper fitment and seal. Corvette motor mounts: We recommend using a 90-degree AN fitting on the top port and a 90-degree AN fitting on the front (angled) port to connect the oil lines to this adapter. F-Body motor mounts: We recommend using a 90-degree AN fitting on the top port and a 60-degree AN fitting on the front (angled) port to connect the oil lines to this adapter. 2010 Camaro / G8 oil pan: Can be mounted upside down for additional header clearance. We recommend using a 90-degree AN fitting on the top port and a 120-degree AN fitting on the front (angled) port to connect the oil lines to this adapter. Applications All 1997 and later GM LS family engines (Gen III & IV) with rear-sump oil pans including LS1/LS6, LS2, LS3, LS7, L76/L92/L93, LQ4/LQ9, LS9, LSA. Also fits all GM Gen III & IV Vortec V8 engines. Does not fit iron block LSX engine without notching. NOT suitable for front-sump pans such as Pontiac GTO or Holden/Vauxhall Monaro & Commodore oil pans. Please see our GTO oil cooler adapter for these applications.
